Home >> Product >> Railway Cable >> FIRERAIL TRACTION CABLES0.6/1KV Multicore Medium Wall Traction Cables
Applications :
- Multicore power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
 |
 |

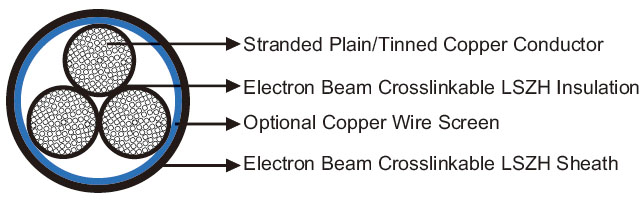

Construction :
- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation : Electron beam crosslinkable medium wall LSZH compound.
- Screening (optional) : Copper Wire Screen(for screened cables).
- Outer Sheath : Electron beam crosslinkable LSZH compound.
Optional :
- FRA-MW-1M-FR (Fire resistant)
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.5 0.75 1.0 1.5 2.5 4.0 6.0 Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 Voltage Rating KV 0.6/1.0 -
Nominal Conductor Cross Section mm² 10 16 25 35 50 Maximum Conductor Resistance Ω/km 1.95 1.24 0.795 0.565 0.393 Voltage Rating KV 0.6/1.0
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
FRA-MW-1M (Multicore unscreened)
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
NominalInsulation Thickness mm |
NominalOverall Diameter mm |
NominalWeight kg/km |
| FRA-MW-1M-2G0.5 | 2×0.5 | 16/0.20 | 0.6 | 5.9 | 48 |
| FRA-MW-1M-4G0.5 | 4×0.5 | 16/0.20 | 0.6 | 7.0 | 55 |
| FRA-MW-1M-7G0.5 | 7×0.5 | 16/0.20 | 0.6 | 9.1 | 72 |
| FRA-MW-1M-18G0.5 | 18×0.5 | 16/0.20 | 0.6 | 12.7 | 86 |
| FRA-MW-1M-3G0.75 | 3×0.75 | 24/0.20 | 0.6 | 6.8 | 70 |
| FRA-MW-1M-5G0.75 | 5×0.75 | 24/0.20 | 0.6 | 8.4 | 107 |
| FRA-MW-1M-8G0.75 | 8×0.75 | 24/0.20 | 0.6 | 10.9 | 147 |
| FRA-MW-1M-12G0.75 | 12×0.75 | 24/0.20 | 0.6 | 11.9 | 175 |
| FRA-MW-1M-20G0.75 | 20×0.75 | 24/0.20 | 0.6 | 15.2 | 350 |
| FRA-MW-1M-2G1 | 2×1.0 | 32/0.20 | 0.6 | 6.9 | 72 |
| FRA-MW-1M-6G1 | 6×1.0 | 32/0.20 | 0.6 | 10.0 | 160 |
| FRA-MW-1M-9G1 | 9×1.0 | 32/0.20 | 0.6 | 12.5 | 210 |
| FRA-MW-1M-25G1 | 25×1.0 | 32/0.20 | 0.6 | 18.7 | 519 |
| FRA-MW-1M-2G1.5 | 2×1.5 | 30/0.25 | 0.7 | 7.5 | 86 |
| FRA-MW-1M-3G1.5 | 3×1.5 | 30/0.25 | 0.7 | 8.0 | 90 |
| FRA-MW-1M-5G1.5 | 5×1.5 | 30/0.25 | 0.7 | 10.2 | 169 |
| FRA-MW-1M-7G1.5(G/Y) | *7G 1.5 | 30/0.25 | 0.7 | 12.1 | 238 |
| FRA-MW-1M-12G1.5 | 12×1.5 | 30/0.25 | 0.7 | 14.2 | 313 |
| FRA-MW-1M-36G1.5 | 36×1.5 | 30/0.25 | 0.7 | 23 | 905 |
*G—yellow/green
FRA-MW-1M-OS (Multicore screened)
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-MW-1M-OS-2G0.5 | 2×0.5 | 16/0.20 | 0.6 | 6.6 | 68 |
| FRA-MW-1M-OS-4G0.5 | 4×0.5 | 16/0.20 | 0.6 | 7.5 | 102 |
| FRA-MW-1M-OS-7G0.5 | 7×0.5 | 16/0.20 | 0.6 | 9.8 | 145 |
| FRA-MW-1M-OS-15G0.5 | 15×0.5 | 16/0.20 | 0.6 | 13.4 | 240 |
| FRA-MW-1M-OS-9P0.5S | 9×2×0.5 | 16/0.20 | 0.6 | 20.6 | 541 |
| FRA-MW-1M-OS-3G0.75 | 3×0.75 | 24/0.20 | 0.6 | 7.5 | 94 |
| FRA-MW-1M-OS-6G0.75 | 6×0.75 | 24/0.20 | 0.6 | 9.9 | 165 |
| FRA-MW-1M-OS-9G0.75 | 9×0.75 | 24/0.20 | 0.6 | 12.3 | 243 |
| FRA-MW-1M-OS-16G0.75 | 16×0.75 | 24/0.20 | 0.6 | 14.4 | 348 |
| FRA-MW-1M-OS-5P0.75S | 5×2×0.75 | 24/0.20 | 0.6 | 16.0 | 354 |
| FRA-MW-1M-OS-4G1 | 4×1.0 | 32/0.20 | 0.6 | 8.8 | 140 |
| FRA-MW-1M-OS-7G1 | 7×1.0 | 32/0.20 | 0.6 | 11.8 | 226 |
| FRA-MW-1M-OS-3G1.5 | 3×1.5 | 32/0.25 | 0.7 | 8.6 | 124 |
| FRA-MW-1M-OS-5G1.5 | 5×1.5 | 32/0.25 | 0.7 | 10.9 | 208 |
| FRA-MW-1M-OS-9G1.5 | 9×1.5 | 30/0.25 | 0.7 | 14.9 | 409 |
| FRA-MW-1M-OS-16G1.5 | 16×1.5 | 30/0.25 | 0.7 | 17.5 | 560 |
| FRA-MW-1M-OS-6P1.5S | 6×2×1.5 | 30/0.25 | 0.7 | 18.9 | 540 |
| FRA-MW-1M-OS-2G2.5 | 2×2.5 | 50/0.25 | 0.7 | 9.6 | 160 |
| FRA-MW-1M-OS-4G2.5 | 4×2.5 | 50/0.25 | 0.7 | 11.3 | 222 |
| FRA-MW-1M-OS-7G2.5 | 7×2.5 | 50/0.25 | 0.7 | 14.8 | 400 |
| FRA-MW-1M-OS-3G4 | 3×4 | 56/0.30 | 0.7 | 11.8 | 260 |
| FRA-MW-1M-OS-5G4 | 5×4 | 56/0.30 | 0.7 | 14.7 | 440 |
| FRA-MW-1M-OS-3G6 | 3×6 | 84/0.30 | 0.7 | 13.8 | 370 |
| FRA-MW-1M-OS-5G6 | 5×6 | 84/0.30 | 0.7 | 17.4 | 620 |
| FRA-MW-1M-OS-3G10 | 3×10 | 80/0.40 | 0.7 | 17.1 | 580 |
| FRA-MW-1M-OS-4G10 | 4×10 | 80/0.40 | 0.7 | 19.2 | 750 |
| FRA-MW-1M-OS-5G10 | 5×10 | 80/0.40 | 0.7 | 21.1 | 850 |
| FRA-MW-1M-OS-3G16 | 3×16 | 126/0.40 | 0.7 | 20.5 | 820 |
| FRA-MW-1M-OS-2G25 | 2×25 | 196/0.40 | 0.9 | 22.9 | 990 |
| FRA-MW-1M-OS-3G35 | 3×35 | 276/0.40 | 0.9 | 27.9 | 1600 |
| FRA-MW-1M-OS-6G35 | 6×35 | 276/0.40 | 0.9 | 39.7 | 3390 |
| FRA-MW-1M-OS-2G50 | 2×50 | 396/0.40 | 1.0 | 29.8 | 1760 |
 |
 |
 |
 |
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
